Voodoo Lab - Dingbat Small Power Package with Pedal Power 2 Plus

$499.99
Out of stock
This item is not currently in stock but is available for purchase. You can contact our Internet sales department at support@stevesmusic.com for inquiries about expected delivery dates.
Cart Images Add to cart

Steve's Code : 66163

Manufactured By : Voodoo Lab

Overview

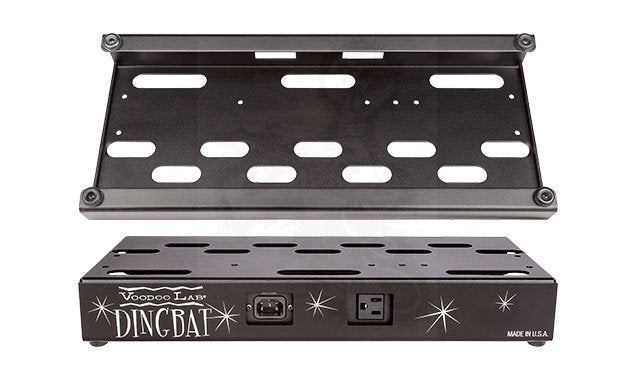

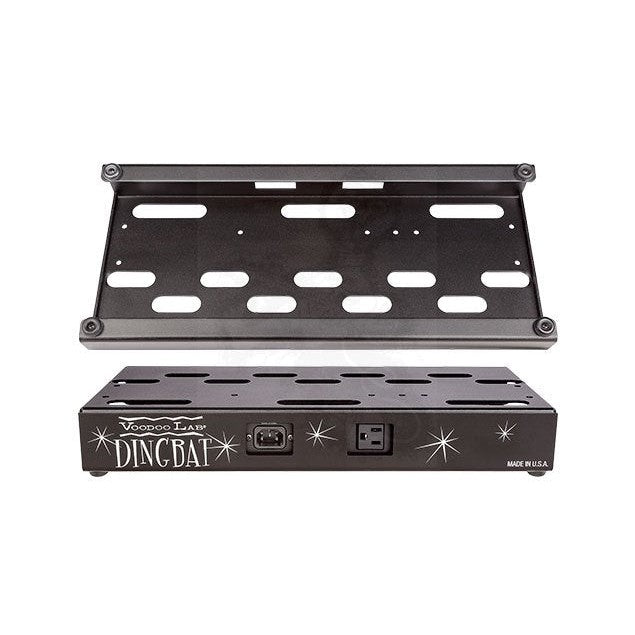

The innovative patent pending design of a Voodoo Lab® Dingbat pedalboard delivers a rugged, lightweight platform for organizing your pedals and keeping cables neatly tucked away and out of view. Crafted from superior American 6061-T6 aircraft-grade aluminum, each pedalboard is made in Sonoma County, California and includes a tour ready gig bag.



At 18" x 7-3/4", the small Dingbat is an ideal size to assemble a compact and lightweight board with 3 to 5 essential effects. Hook-and-loop tape is provided to attach pedals, also zip ties and 4-way tie mounts to secure cabling underneath.



Gig Bag
Each Dingbat pedalboard includes a heavy-duty tour grade padded gig bag that features premium YKK zipper hardware.





Dingbat Small Features



  • Lightweight American 6061-T6 aircraft-grade Aluminum chassis

  • Pedalboard surface: 18" x 7.75" (457mm x 197mm)

  • Pedalboard weight: 2.6 lbs. (1.2 kg)

  • Mounting brackets for easy installation of Voodoo Lab Pedal Power power supply

  • Power Packages Only: Factory-installed Voodoo Lab Pedal Power with power cables

  • Adhesive-backed hook-and-loop pedal mounting fasteners

  • UV-resistant cable ties and 4-way tie mounts

  • Professional tour grade padded gig bag with premium YKK zipper

  • Made in the U.S.A.





Pedal Power® 2 PLUS Features



9/12V (x4) – Standard 9V and 12V Boss ACA
With each one of these four outputs delivering 100mA, you can easily power any 9V battery-operated pedals. Boss pedals that specify the PSA adapter operate at 9V like most other pedals. Boss pedals that require the ACA adapter operate at 12V which can be selected via switches underneath the Pedal Power 2 PLUS. Any one of these outputs can be individually selected to run at 9V or 12V.



9V (x2) – High Current 9V and Line 6 Modelers
These two outputs each deliver 250mA allowing you to run high current draw effects like the Boss DD-20 Giga Delay or Line 6 DL4 Delay Modeler. Via switches underneath the Pedal Power 2 PLUS, these two outputs can be separately configured for regulated (Boss Twin Pedals) or unregulated (Line 6 Modelers) power allowing you to run both units if so desired. These outputs can also power any standard 9V effects as well.



9V (x2) – Standard 9V With Battery Sag Control
These outputs each have an available 100mA of power, but also allow you to SAG the voltage from roughly 4V to 9V. This feature can be enabled via the bottom panel switches. The SAG control is mostly useful for transistor-based fuzz, octavia, and distortion circuits, as most modern opamp designs are minimally affected by variations in supply voltage. We recommend turning SAG off if you’re going to run digital pedals like delay, chorus, and reverb.



18V/24V – Using Custom Cables
All of the outputs on the Pedal Power 2 PLUS (and the original Pedal Power) are completely isolated allowing you to create different voltages. You can run effects like the current MXR Flanger by combining two 9V outputs to create a single 18V supply. By switching two outputs into 12V ACA mode, you can join them together to create a 24V output for powering numerous Electro-Harmonix stompboxes including the Deluxe Memory Man.
