Features

Ibanez AEQ-TTS preamp w/Onboard Tuner

The small and simple preamp has only two control knobs, volume and shape. This at-a-glance tone control offers natural acoustic sound in the center position. It allows players to adjust the tone easily and enables them to go from low, fat and powerful tones to a bright and crisp sound while adjusting only one knob. A new easy-to-read onboard tuner with LCD(liquid crystal display) is located on the preamp.

Nyatoh neck

The 3pc Nyatoh/Maple Neck provides a rich mid-low end.

Okoume back and sides

The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.

SPECS

body shape AEG body

top Spruce top

back & sides Okoume back & Okoume sides

neck AEGNyatoh neck

fretboard Laurel fretboard

bridge Laurel bridge

inlay White dot inlay

soundhole rosette Acrylic

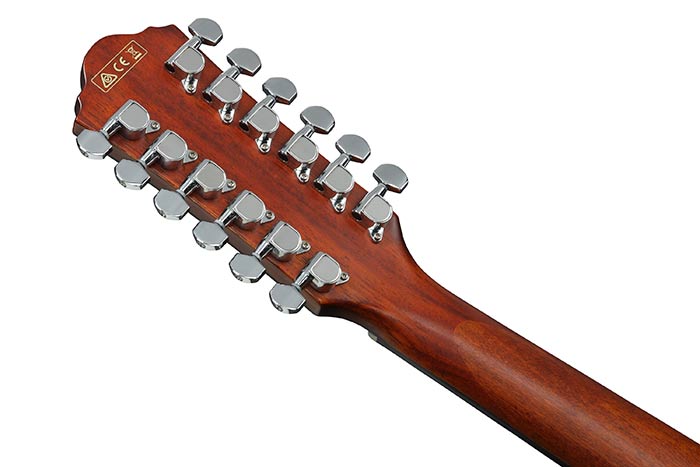

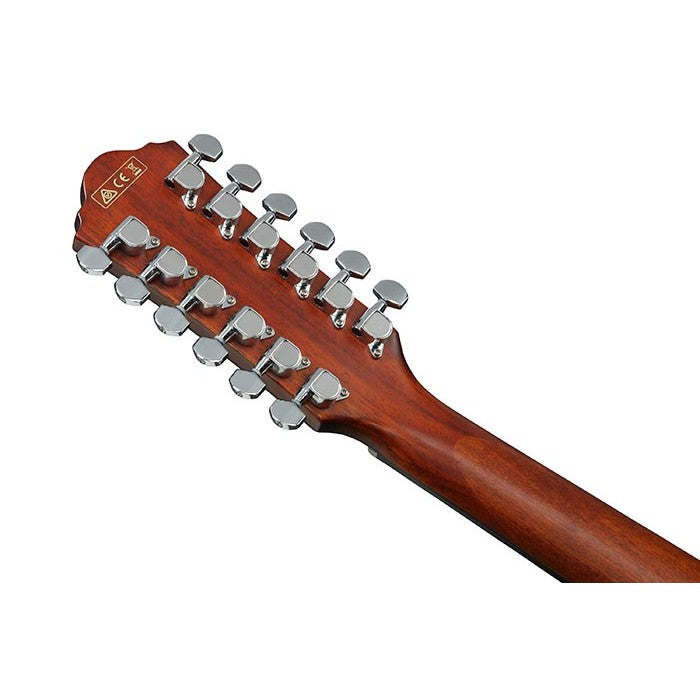

tuning machine Chrome Die-cast tuners

nut material Plastic

number of frets 20

saddle material Plastic

bridge pins Ibanez Advantage™

strings Ibanez IACS12C

string gauge .010/.010/.014/.014/.023/.008/.030/.012/.039/.018/.047/.027

string space 11mm

factory tuning 1E,2B,3G,4D,5A,6E

pickup Ibanez T-bar II Undersaddle

preamp Ibanez AEQ-TTS preamp w/Onboard tuner

output jack 1/4" output

NECK DIMENSIONS

Scale: 634mm

a: Width 45mm at NUT

b: Width 57mm at 14F

c: Thickness 21mm at 1F

d: Thickness 22mm at 7F

Radius: 400mmR

BODY DIMENSIONS

a: Length 19 3/8"

b: Width 15 1/4"

c: Max Depth 3 3/4"
